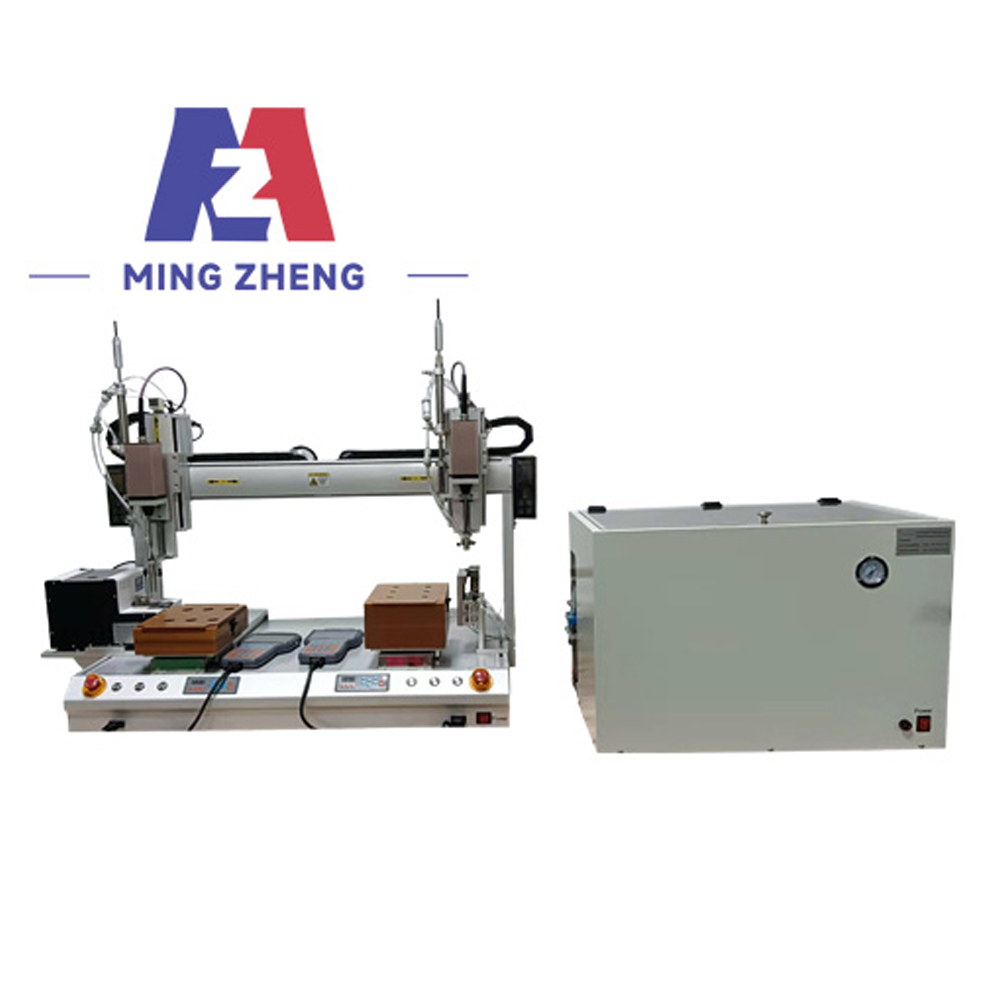

| Auto Screw Locking Machine Specifications | CT-481-2XYZ |
| Model | CT-481-2XYZ |
| Travel Range X/Y/Z (mm) | 400 × 800 × 50 |
| Max. Workpiece Size X/Y (mm) | Left Station: 220×800; Right Station: 220×800 |
| Max. Load Y/Z | 8 kg / 4 kg |
| Moving Speed X&Y/Z (mm/sec) | 0.1 ~ 800 / 600 |
| Repeatability | ±0.02 mm |
| Control System | Minjie Automatic Screw Locking Control System |
| Motor System | Japan Imported Micro-Step Precision Motor |
| Program Storage / Max. Points per Program | 1000 programs / 4000 points |
| Transmission System | Taiwan Imported Linear Guide + American Gates Timing Belt |
| Input Power | Full Voltage AC220V 50/60Hz |
| Applicable Torque Range | 0.5~45 kgf·cm |
| Applicable Screw Size | M1.0-M5.0 |
| Thread Stripping Alarm | Yes |
| Missing Screw Alarm | Yes |
| Parts Counting Function | Yes |
| Torque Not Reached Alarm | Yes |
| Overall Dimensions (W×D×H, mm) | 620 × 1085 × 622 |
