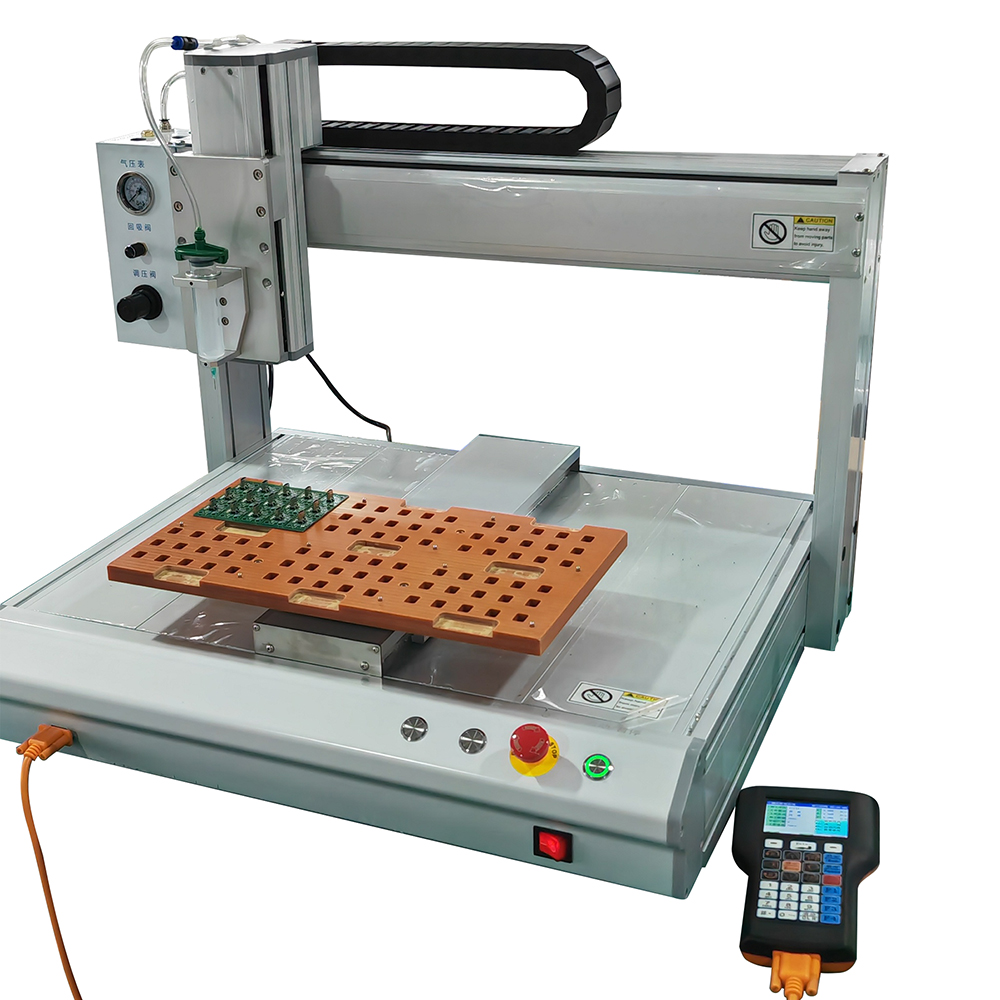

model numarası.: MZ-DJ01
The file is encrypted. Please fill in the following information to continue accessing it
| Model | MZ331 | MZ441 | MZ5331 |
| Dispensing Travel X/Y/Z (mm) | 300×300×100 | 400×400×100 | 500×300×100 |
| Max Payload (kg) | 10 | ||
| Moving Speed (mm/s) | 0-500 | ||
| Positioning Accuracy (mm) | ±0.02 (Aluminum Alloy Frame) | ||
| Axis Transmission Configuration | Japan Servo Motor + HIWIN Dual Linear Guide Rails + R&D Servo Driver + Habasit Timing Belt | ||
| Programmer | Handheld Teach Pendant (Color Screen, Full-Function Control System) | ||
| Air Supply Requirement | 0.1–7 MPa, built-in glue back-suction function | ||
| Hot Melt Dispensing Head | 30cc Syringe Barrel | ||
| Extended I/O | 4 Input / 4 Output | ||
| Input Power (AC) | 110V–220V, 50Hz | ||
| Operating Environment (°C) | Humidity: 20–90%, Temperature: 0–40°C | ||
| Overall Machine Dimension (mm) | 540×580×650 | 640×580×650 | 730×580×650 |
| Net Weight (kg) | 48 | 52 | 65 |
