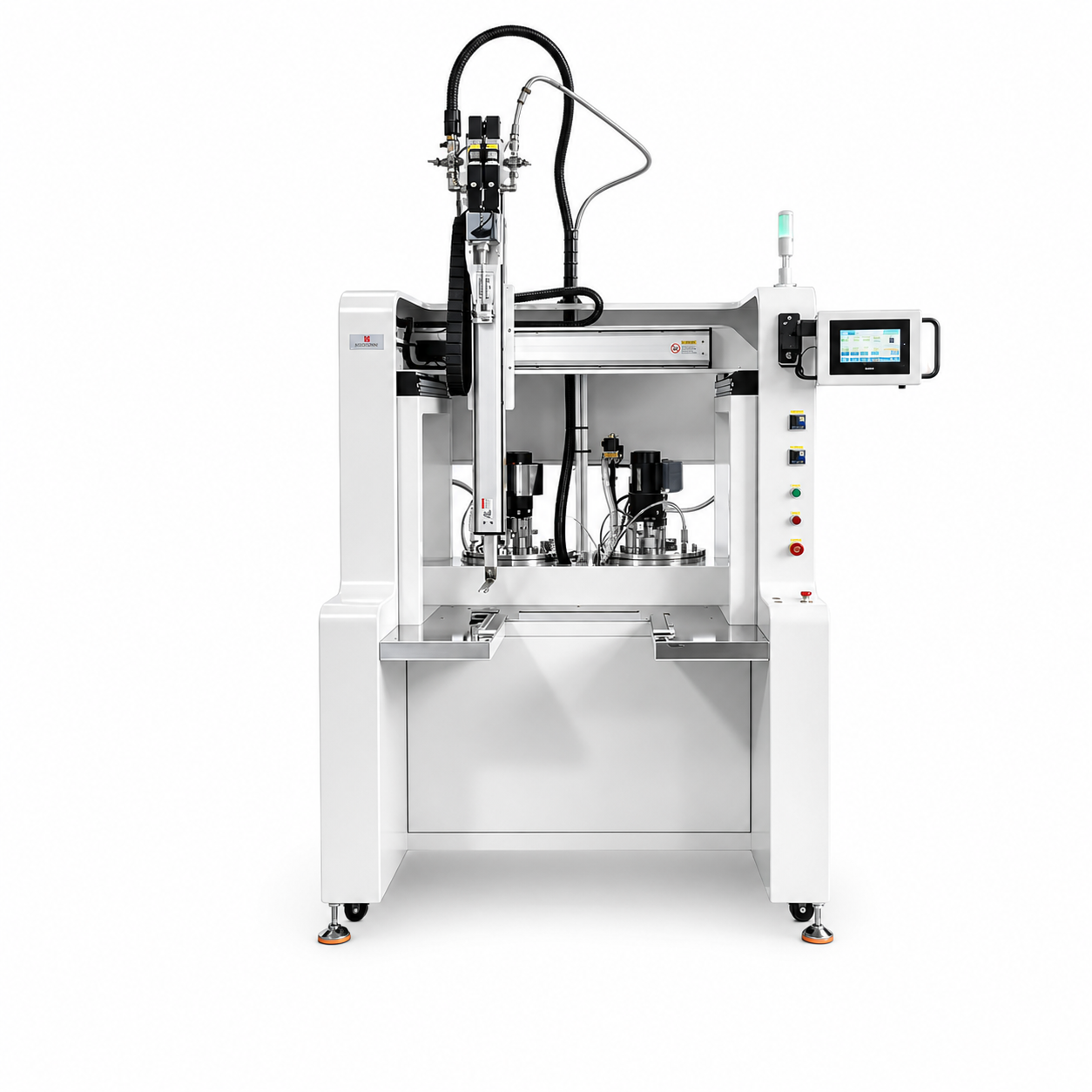

model numarası.: MZ-AB-03
Model: MZ-AB-03
Travel X/Y/Z: 500/300/100mm (customizable)
Z-axis Load: 6KG
Moving Speed: X&Y:500mm/s, Z:400mm/s
Mixing Ratio: 10:1 ~ 1:1 adjustable
Mixing Type: Dynamic / static mixing valve
Potting Accuracy: ±0.02g
Metering Valve: Screw valve
A/B Tank Capacity: 30L each, with heating, stirring & vacuum defoaming
Discharge Rate: 3~30g/s, digitally adjustable
Dispensing Head: 1~4 heads optional
Tank Heating Range: Ambient ~ 60℃
Input Air Pressure: 0.4–0.8MPa
Working Air Pressure: 0.4–0.6MPa
Total Power: 6000W, normal operation:1000W
Konumlandırma Doğruluğunu Tekrarlayın: ±0,05 mm
Dimension: 1320×1200×2055mm
Weight: ~400kg
Motor: Stepper motor
Transmission: Ball screw + linear guide rail
Control: PLC + HMI touch screen
Power Supply: AC220V
Working Environment: Temp:5~40℃, Humidity:20~90% non-condensing
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Specification |
| Model | MZ-AB-03 |
| Travel X/Y/Z | 500/300/100mm (customizable) |
| Z-axis Load | 6KG |
| Moving Speed | X&Y:500mm/s, Z:400mm/s |
| Mixing Ratio | 10:1 ~ 1:1 adjustable |
| Mixing Type | Dynamic / static mixing valve |
| Potting Accuracy | ±0.02g |
| Metering Valve | Screw valve |
| A/B Tank Capacity | 30L each, with heating, stirring & vacuum defoaming |
| Discharge Rate | 3~30g/s, digitally adjustable |
| Dispensing Head | 1~4 heads optional |
| Tank Heating Range | Ambient ~ 60℃ |
| Input Air Pressure | 0.4–0.8MPa |
| Working Air Pressure | 0.4–0.6MPa |
| Total Power | 6000W, normal operation:1000W |
| Repeat Positioning Accuracy | ±0.05mm |
| Dimension | 1320×1200×2055mm |
| Weight | ~400kg |
| Motor | Stepper motor |
| Transmission | Ball screw + linear guide rail |
| Control | PLC + HMI touch screen |
| Power Supply | AC220V |
| Working Environment | Temp:5~40℃, Humidity:20~90% non-condensing |
