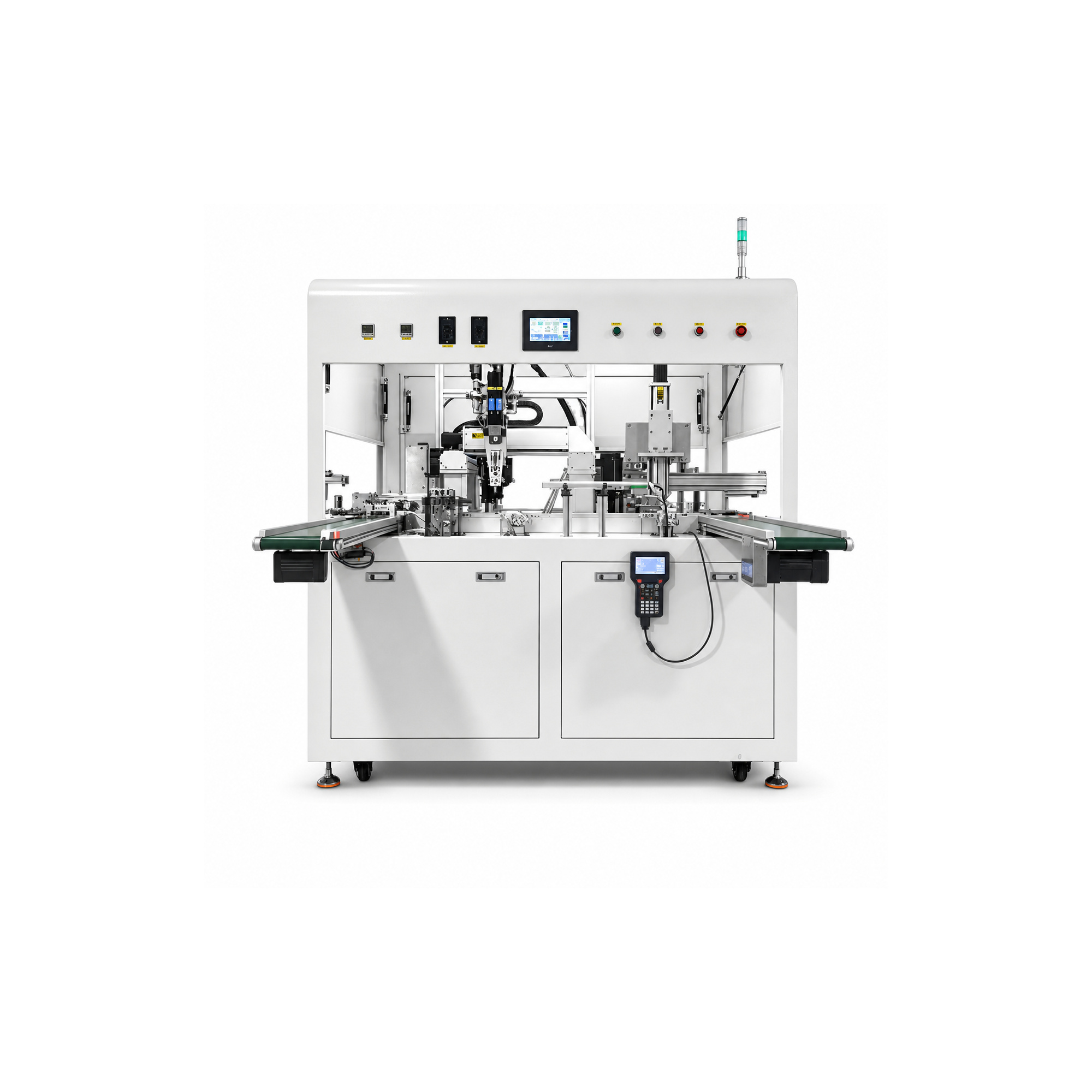

model numarası.: MZ-AB-D
Model: MZ-AB-D
Z-axis Load: 6KG
Mixing Ratio: 1:1 ~ 10:1 (optional)
Potting Accuracy: ±0.02g
Konumlandırma Doğruluğunu Tekrarlayın: ±0,05 mm
Metering Accuracy: ±0.02g
Ratio Accuracy: ±0.02g
Giriş Hava Basıncı: 0,4–0,8 MPa
Çalışma Hava Basıncı: 0,4–0,6 MPa
AB Mixing Type: Dynamic mixing / Static mixing
AB Material Tank Heating: Ambient ~ 60℃
AB Material Tank Stirring: Timed & constant speed
AB Material Tank Vacuum: Automatic vacuum feeding
Total Power: 2400W under normal operation
Travel X/Y/Z: 500/300/100mm (customizable)
Moving Speed: X&Y:500mm/s, Z:400mm/s
Metering Method: Servo motor + screw valve
A/B Tank Capacity: 30L, with stirring, heating & vacuum defoaming
Vacuum Feeding Pump: AC220V/50HZ (optional)
AB Discharge Rate: 0.5~50g/s, digitally adjustable
Motor System: Servo motor + AC motor
AB Dispensing Head: 1~4 heads optional
Dimension: 1800×1500×1955mm
Working Temperature: 5~40°C
Güç Kaynağı: AC220V 50Hz
| İndir | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Specification |
| Model | MZ-AB-D |
| Z-axis Load | 6KG |
| Mixing Ratio | 1:1 ~ 10:1 (optional) |
| Potting Accuracy | ±0.02g |
| Repeat Positioning Accuracy | ±0.05mm |
| Metering Accuracy | ±0.02g |
| Ratio Accuracy | ±0.02g |
| Input Air Pressure | 0.4–0.8MPa |
| Working Air Pressure | 0.4–0.6MPa |
| AB Mixing Type | Dynamic mixing / Static mixing |
| AB Material Tank Heating | Ambient ~ 60℃ |
| AB Material Tank Stirring | Timed & constant speed |
| AB Material Tank Vacuum | Automatic vacuum feeding |
| Total Power | 2400W under normal operation |
| Travel X/Y/Z | 500/300/100mm (customizable) |
| Moving Speed | X&Y:500mm/s, Z:400mm/s |
| Metering Method | Servo motor + screw valve |
| A/B Tank Capacity | 30L, with stirring, heating & vacuum defoaming |
| Vacuum Feeding Pump | AC220V/50HZ (optional) |
| AB Discharge Rate | 0.5~50g/s, digitally adjustable |
| Motor System | Servo motor + AC motor |
| AB Dispensing Head | 1~4 heads optional |
| Dimension | 1800×1500×1955mm |
| Transmission | Timing belt / Ball screw + linear guide rail |
| Control System | PLC + HMI touch screen + single-chip microcomputer |
| Working Temperature | 5~40°C |
| Working Humidity | 20~90%, non-condensing |
| Power Supply | AC220V 50HZ |
